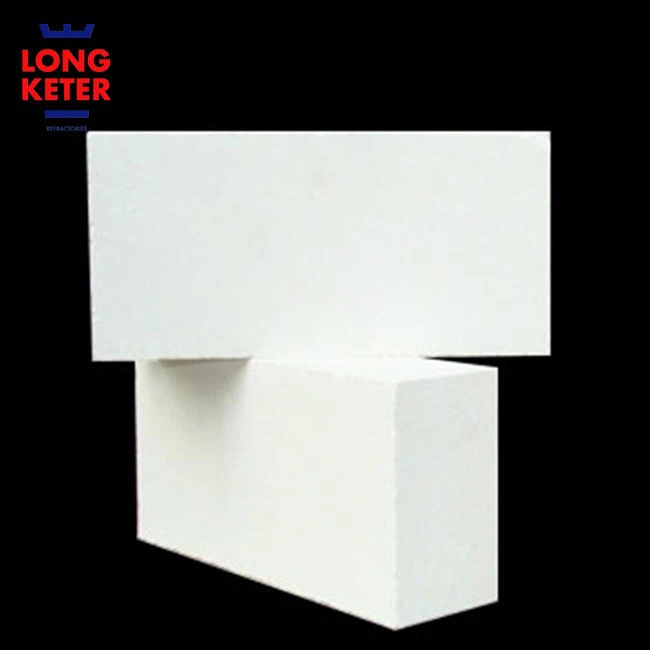

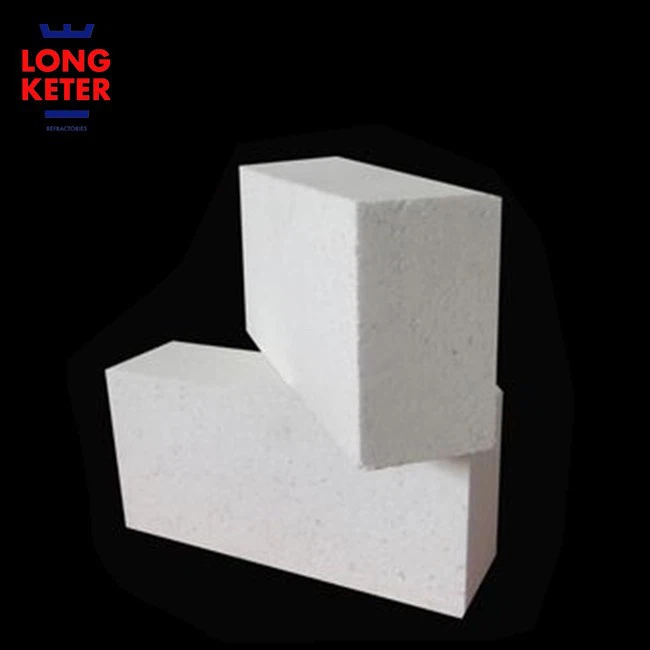

Zirconia refractory cibyog siab - kub, siab - cov ntaub ntawv muaj zog refractory ua los ntawm siab - purity zirconia hmoov thiab alumina hmoov raws li raw cov ntaub ntawv, thiab ces ua los ntawm qhuav nias los yog molding, grouting thiab dip txheej, thiab sintering ntawm 1150℃. Refractory zirconia bricks yog siv nyob rau hauv siab -kub kiln sab hauv ob sab phlu, tshav kub rwb thaiv tsev txheej, thermal rwb thaiv tsev ntawm thermal khoom, hluav taws xob rauv sab hauv ob sab phlu thiab lwm yam teb.
Cov yam ntxwv tseem ceeb ntawm refractory zirconia bricks yog qhov kub thiab txias stability, muaj zog tiv taus tshuaj yaig, thiab muaj peev xwm tiv taus kub, siab siab gas corrosion, molten iav, hlau thiab lwm yam kua yaig. Refractory zirconia bricks kuj muaj zog thiab hardness, du nto thiab ntev kev pab cuam lub neej. Hauv qee qhov chaw hnyav xws li kub siab, siab siab, thiab muaj zog corrosion, kev ua haujlwm ntawm refractory zirconia bricks yog qhov zoo heev, uas tuaj yeem ua kom muaj kev ua haujlwm zoo ntawm cov khoom siv.
Zirconia Refractory Cib Daim Ntawv Thov:
Feem ntau yog siv rau refining cheeb tsam, melting cheeb tsam dog tsev cheeb tsam, pem hauv ntej phab ntsa, caj pas cheeb tsam, burner block, kos duab cheeb tsam, lub mis phab ntsa thiab lwm yam ntawm iav smelting rauv.
Zirconia Refractory CibRaw Khoom:
Alumina hmoov, desiliconized zirconium, zircon xuab zeb thiab lwm yam.
Zirconia Refractory CibHom:
Tsis tu ncua casting, tilting casting, ntom casting thiab tsis shrinkage kab noj hniav casting hom.
Raws li cov ntsiab lus Al2O3 sib txawv, muaj AZS 33#, AZS 36# thiab AZS 41# hom.
Zirconia Refractory CibTxheej txheem ntau lawm:
Tag nrho cov ntaub ntawv raw yog ua tiav rau hauv cov hmoov thiab sib tov sib txawv raws li qhov xav tau sib txawv, tom qab ntawd yaj hauv qhov kub kub hluav taws xob, tom qab ntawd muab pov rau hauv pwm. Tom qab demolding, blocks yog qhuav thiab engineered nrog cib txiav tshuab.
Zirconia Refractory CibKhoom:
Muaj zog iav corrosion kuj thiab siab thermal shack stability.
Kev hnav zoo-ua haujlwm, dregs-ua haujlwm thiab alkali corrosion kuj.
High - cov khoom siv purity, tsis tshua muaj kuab paug.
|
Yam khoom |
Cov khoom | |||
|
TIAB SA 33 |
TIAB SA 36 |
TIAB SA 41 |
||
|
Tshuaj muaj pes tsawg leeg |
Al2O3 % |
Tsawg dua los yog sib npaug li 50 |
Tsawg dua los yog sib npaug li 50 |
Tsawg dua los yog sib npaug li 45 |
|
ZrO2 % |
32-36 |
36-40 |
40-44 |
|
|
SiO2 % |
16-16.5 |
Tsawg dua los yog sib npaug li 12 |
Tsawg dua los yog sib npaug li 12 |
|
|
Na2O+K2O % |
Tsawg dua los yog sib npaug rau 1.3 |
Tsawg dua los yog sib npaug rau 1.3 |
1.0 |
|
|
Qhov ceev ceev g / cm3 |
3.6 |
3.6 |
3.7 |
3.9 |
|
Txias crushing zog MPa |
Ntau dua lossis sib npaug li 300 |
Ntau dua lossis sib npaug li 300 |
Ntau dua lossis sib npaug li 300 |
|
|
Refractoriness nyob rau hauv load (0.2MPa, 0.6%) degree |
Ntau dua lossis sib npaug rau 1680 |
Ntau dua lossis sib npaug rau 1700 |
Ntau dua lossis sib npaug rau 1700 |
|
|
Exudation Kub ntawm iav Phase |
Ntau dua lossis sib npaug rau 1400 |
Ntau dua lossis sib npaug rau 1410 |
Ntau dua lossis sib npaug rau 1410 |
|
|
Bubble sib cais (1300℃* 10h) degree |
Tsawg dua los yog sib npaug li 1.5 |
Tsawg dua los yog sib npaug rau 1.0 |
Tsawg dua los yog sib npaug rau 1.0 |
|
|
Anti-corrosion tus nqi ntawm iav kua 1500℃* 36h (mm / 24h)% |
Tsawg dua lossis sib npaug li 1.45 |
Tsawg dua los yog sib npaug rau 1.3 |
Tsawg dua los yog sib npaug rau 1.2 |
|
|
Pom tseeb qhov ceev g / cm3 |
PT |
Ntau dua lossis sib npaug rau 3.45 |
||
|
ZWS |
Ntau dua lossis sib npaug rau 3.6 |
Ntau dua lossis sib npaug rau 3.7 |
Ntau dua lossis sib npaug rau 3.9 |
|
|
WS |
Ntau dua lossis sib npaug rau 3.7 |
Ntau dua lossis sib npaug rau 3.9 |
Ntau dua lossis sib npaug rau 4.0 |
|
